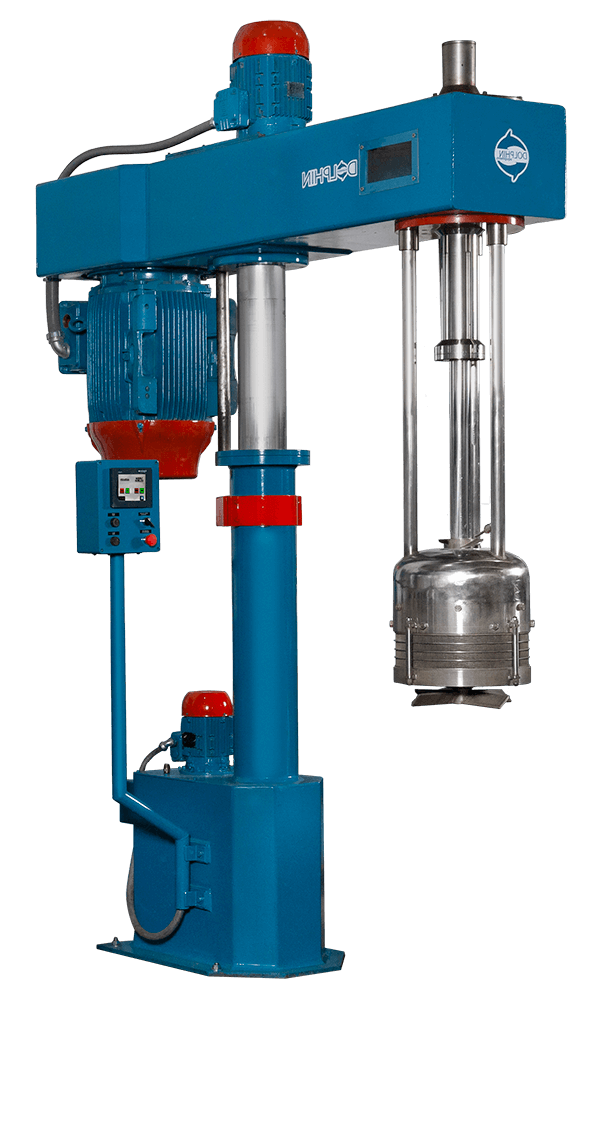

Basket mill for grinding lots from 200 to 600 liters


Bolt Rotor Motor 30 HP at 50 Hz

Agitation System Motor 5.5 HP at 50 Hz

Elevation System with plunger system and bronze guide bushing

Hydraulic control of 2 HP with gear pump and electro valve

Manufactured in IP55 Protection Efficiency Std. or High Efficiency explosive proof

300 mm. diameter abrasion resistant stainless steel basket, with 0.25 mm, 0.5 mm. or 1 mm. slots to accommodate 0.6-0.8 mm., 1-1.2 mm. or 2-2.4 mm. zirconium beads

Top dome with cooling jacket by water circulation and system of fixed and mobile bolts easy replacement

Interchangeable agitation propeller according to the viscosity of the product

Control panel with touch screen from 5`` to 10`` according to adjustment variables with lift button and emergency stop
